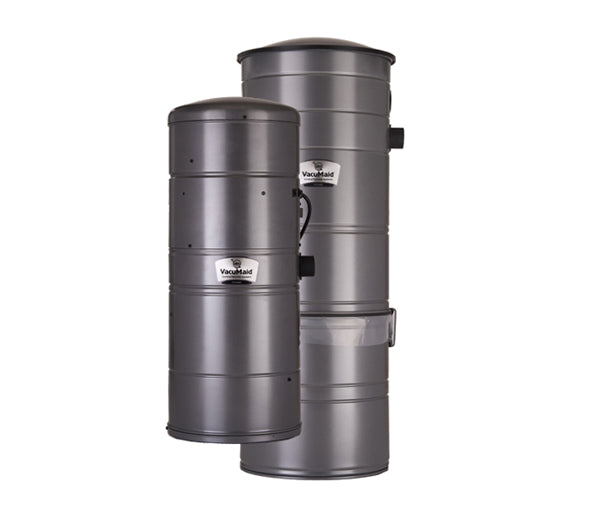

S3600 Cyclonic with Two 7.2” Premier By-Pass Motors 240 volt

Description

Central Vacuum Power Unit Specifications
• (2) 7.2” 2-Stage Tangential By-Pass Motors
• Cyclonic Filtration
• 38 Qt. Dirt Capacity
• DB Rating w/ Vented Exhaust: 78
• Dimensions
Power Unit
Dia: 13-5/8 in.
Ht: 30-3/4 in.
• Up to total Sq. Ft. : 18,000+

Motor Specs
Voltage…………………………………….240
Max Amps………………………………16.4
Max Airwatts…………………………..1268
Airflow…………………………………….229 CFM
Sealed Vacuum………………………..137 “H2O

S3600 Unit Specification

• Ametek Lamb two 7.2” tangential bypass motor provides powerful cleaning capabilities for deep cleaning of your home.
• Cyclonic Filtration with AirChannelTM – Allows a can liner to be used for mess-free debris disposal
No messy filters to clog or clean. Virtually 100% sustained cleaning power.
• Optional Plastic Bag Replacement Part #PB14MK

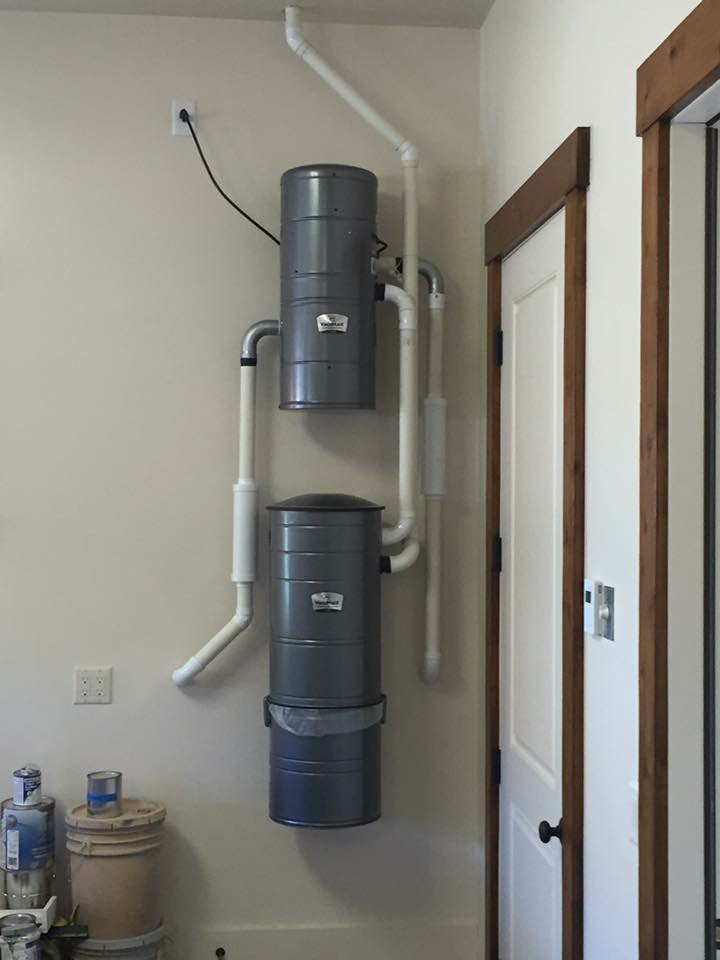

• Split Canister Design – Hang the 14” dirt canister in an easily accessible location & the motor in a location away from the living environment.
• This unit is suitable for some commercial applications.

• 10 Year Limited Lifetime Warranty
• Motor sustainability – Equipped with brush interrupters
• Hide-A-Hose Compatible
• Durable Steel Construction – Made from rolled galvannealed steel
• Manufactured in the USA, Ponca City, OK
• Powder-coated for tough, corrosion-resistant lifetime of use
• Allergy-reducing operation
• Convenient & easy to use
• Quickly installed in new or existing homes

Quick and easy replacement for Imperium CV15400.
