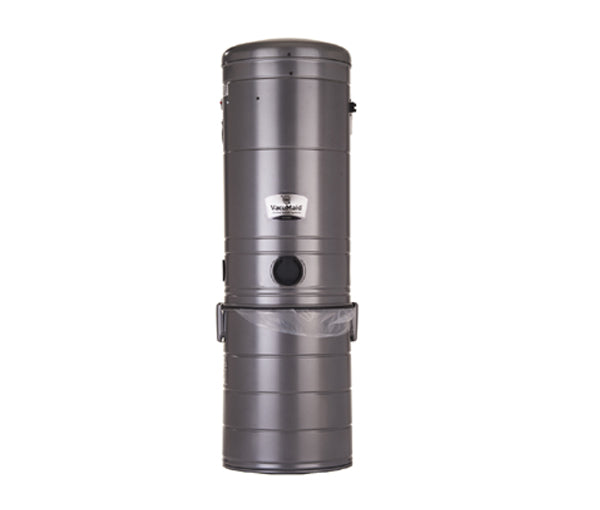

CS46 Inverted Bag Power Unit with 3000 hour 6.6” By-Pass

Central Vacuum Power Unit Specifications
• 6.6” 2-Stage Tangential By-Pass Motor
• Cyclonic Inverted Bag (Paper Bag option)
• 27 Qt. Dirt Capacity
• DB Rating w/ Vented Exhaust: 60

Dimensions Power Unit
Diameter: 12-7/8 in.
Height: 39-7/8 in.

Voltage…………………………………….120
Max Amps………………………………9.6
Max Airwatts…………………………..484
Airflow…………………………………….127 CFM
Sealed Vacuum………………………..110 “H2O

Made in USA
10 Year Limited Lifetime Warranty

• Ametek Lamb high airwatt 6.6” 2-stage tangential bypass motor provides powerful cleaning capabilities
• Long life motor; Approx. 3000 hours

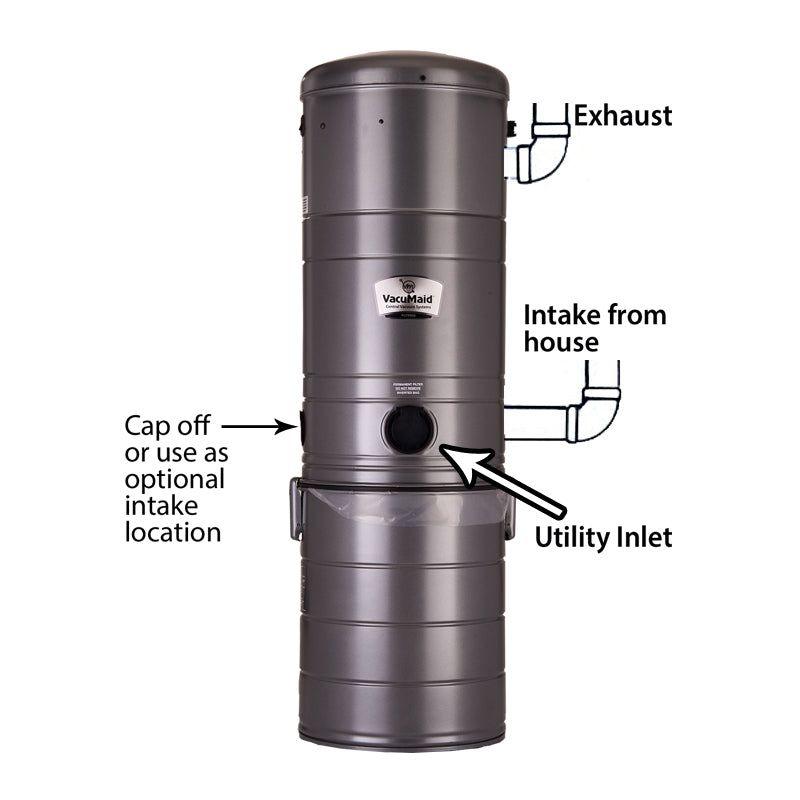

• Utility valve on front of unit allows you to plug directly into the power unit
Inverted Bag Filtration
• Provides cyclonic filtration with added inverted bag barrier
• Optional special stem allows you to use an sealed paper bag for easy maintenance
