Titan central vacuums compared: TCS4792, TCS5525, TCS7702, TCS8575 and TCS9902
Avon Vacuums carries five current Titan central-vacuum power units—not two. This complete dealer comparison covers the compact TCS4792 through the 10,000-square-foot TCS9902, with exact manufacturer images and current published specifications.
Quick answer
TCS4792: compact and quiet. TCS5525: six-gallon filtered value. TCS7702: high-air-watt hybrid. TCS8575: larger filtered system with strong sealed suction. TCS9902: the highest-capacity model, rated up to 10,000 sq. ft.
The 30-second choice
Use square-foot ratings as a starting point, then check pipe length, the farthest inlet, hose type and system resistance. The TCS4792 and TCS5525 both target homes up to 5,000 square feet, but they solve different priorities: the TCS4792 is the compact 56-decibel option with 600 air watts and 140 inches of water lift, while the TCS5525 provides a larger six-gallon capacity, replaceable HEPA cartridge, onboard inlet and lifetime motor warranty.
The TCS7702 steps to a 7,500-square-foot rating and hybrid bag-or-bagless operation with 700 air watts. The TCS8575 reaches 8,000 square feet with 141 inches of water lift, a six-gallon capacity and replaceable HEPA cartridge. The TCS9902 is the highest-capacity current Titan, rated up to 10,000 square feet with 659 air watts, 144.9 inches of water lift and hybrid filtration.
Meet all five current Titan power units
These five models are both visible in Titan’s current manufacturer lineup and active in the Avon Vacuums catalog. The images are exact manufacturer model images. Call before visiting because dealer floor stock can change.
Titan TCS4792
600 air watts, 140 inches of water lift, 127.1 CFM, 3.6-gallon capacity and a 56-decibel rating in a compact 20-pound power unit.
View TCS4792
Titan TCS5525
525 air watts, 124 inches of water lift, six-gallon capacity, replaceable HEPA cartridge, onboard inlet, premium muffler and lifetime motor warranty.
View TCS5525
Titan TCS7702
700 air watts, 138.1 inches of water lift, 138 CFM, five-gallon capacity, hybrid bag-or-bagless filtration and a 58-decibel rating.
View TCS7702
Titan TCS8575
525 air watts, 141 inches of water lift, six-gallon capacity, replaceable HEPA cartridge, onboard inlet and lifetime motor warranty.
View TCS8575

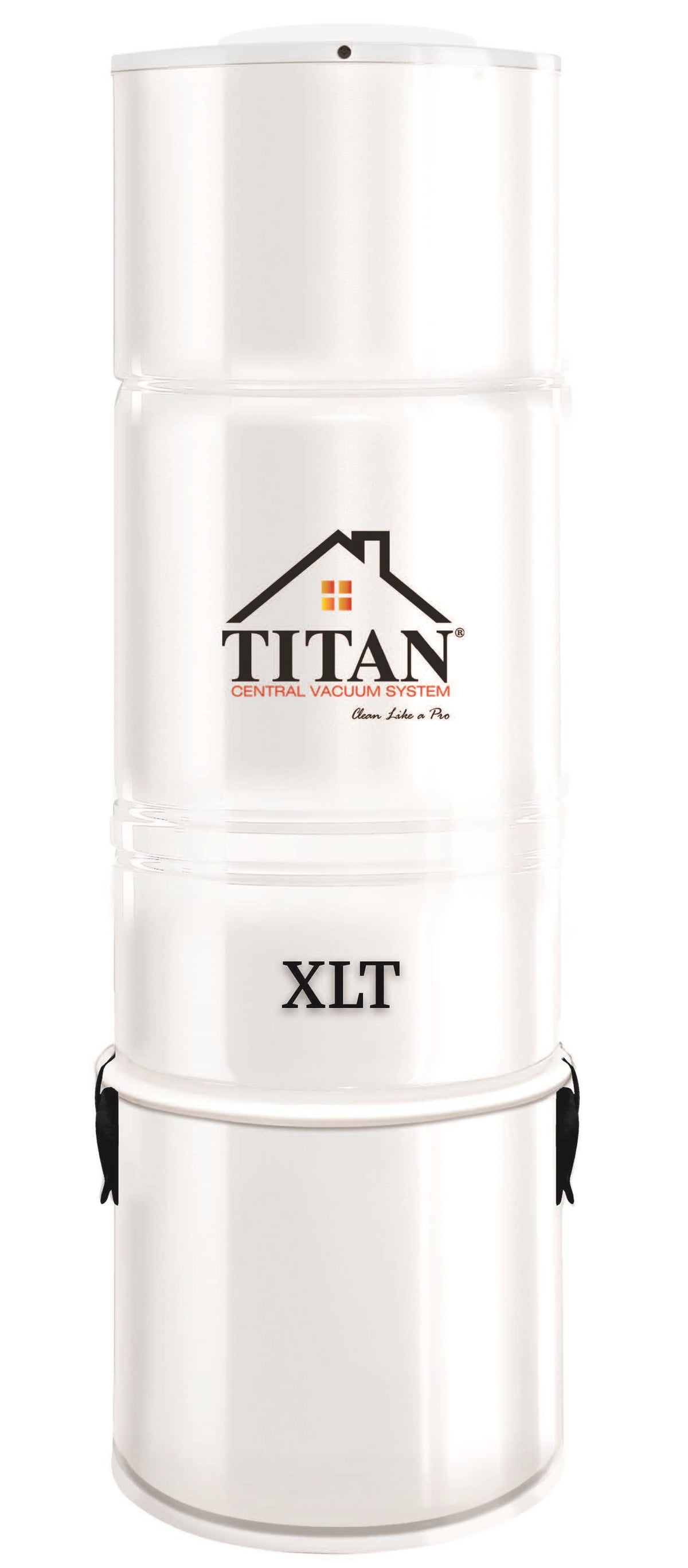

Titan TCS9902
659 air watts, 144.9 inches of water lift, 135.8 CFM and hybrid bag-or-self-cleaning-filter operation. Titan lists support for up to four hide-a-hose hoses.
View TCS9902Titan central-vacuum specifications compared
Swipe horizontally to compare every column →
| Model | Home-size rating | Air watts | Water lift | Capacity / filtration | Standout |
|---|---|---|---|---|---|
| TCS4792 | Up to 5,000 sq. ft. | 600 | 140.0 in. | 3.6-gallon capacity | 56 dB; 20 lb.; compact 27.5-in. height |
| TCS5525 | Up to 5,000 sq. ft. | 525 | 124 in. | 6 gallons; replaceable HEPA cartridge | Onboard inlet, premium muffler, lifetime motor warranty |
| TCS7702 | Up to 7,500 sq. ft. | 700 | 138.1 in. | 5 gallons; hybrid bag or bagless | 138 CFM; 58 dB; 10-year parts warranty |
| TCS8575 | Up to 8,000 sq. ft. | 525 | 141 in. | 6 gallons; replaceable HEPA cartridge | Onboard inlet and lifetime motor warranty |
| TCS9902 | Up to 10,000 sq. ft. | 659 | 144.9 in. | 5-gal. bag / 4-gal. canister; hybrid | Largest rating; up to four hide-a-hose hoses; 10-year parts warranty |
What air watts, water lift and CFM actually tell you
Air watts
A calculated performance measure combining airflow and suction. The TCS7702 has the highest published air-watt figure here, but that alone does not make it the right unit for every pipe network.
Water lift
Measures sealed suction. The TCS9902’s 144.9-inch rating is the highest in this current lineup, followed by the TCS8575 at 141 inches and TCS4792 at 140 inches.
CFM
Measures airflow. Titan publishes CFM for TCS4792, TCS7702 and TCS9902, but not for every current model, so a single-metric ranking would be misleading.
Which Titan fits your central-vacuum system?
Replacing an old power unit or installing a new system
Replacement power unit
An older Beam, Nutone, Vacuflo, Honeywell, VacuMaid or Titan system can often accept a new power unit, but the model label is only the beginning. We still verify pipe connections, voltage, low-voltage wiring, mounting space, exhaust, filter access, hose type and the condition of the existing network.
New installation
New construction and open-wall renovation provide the cleanest design options. Finished-home retrofits can also work, but the correct power unit depends on total developed pipe length, elbows, inlet count, hose length and where the unit can be mounted and serviced.
Have Avon Vacuums size the complete system
Call (860) 678-0011 or visit 12 West Main Street, Avon, CT. Bring the home size, floor plan, existing unit label and photos of the pipe and wiring so we can narrow all five current Titan options accurately.
Current models versus older Titan models
This comparison now covers every Titan central-vacuum power unit active in the Avon Vacuums catalog: TCS4792, TCS5525, TCS7702, TCS8575 and TCS9902.
Protect the system after installation
Keep the motor-cooling area clear, never operate the unit without the required filter or bag configuration, and empty or replace the collection container before it becomes overfilled. Care intervals vary by model and household. Follow the exact owner’s manual rather than applying one filter schedule to all five units.
Titan central vacuum FAQ
Which Titan central-vacuum models does Avon currently carry?
Which current Titan central vacuum has the largest home-size rating?
Why does the TCS7702 have more air watts than the larger TCS9902?
What is the difference between TCS4792 and TCS5525?
Which Titan models can operate with a bag?
Can a current Titan replace an older TCS4702, TCS5702 or TCS6602?
Do I need professional central-vacuum installation?
