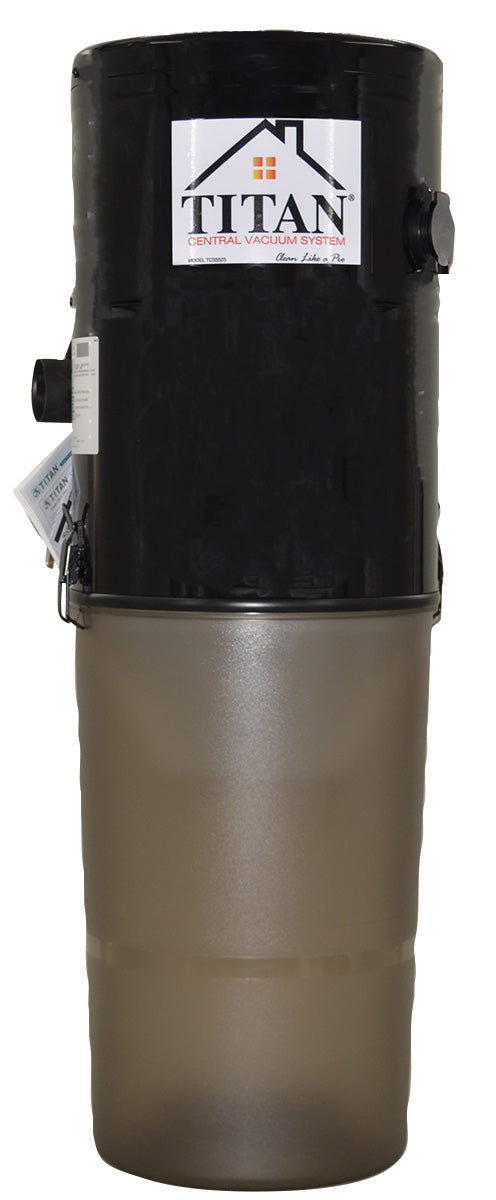

Titan TCS8575 Central Vacuum Power Unit for Large Homes

What this listing includes

This listing is the TCS8575 power unit with its collection assembly and required filter configuration. It is not a complete whole-home installation package. Hoses, powered carpet heads, floor brushes, wall inlets, pipework, low-voltage wiring and installation labor must be selected separately unless a specific written package includes them.

The floor-cleaning result depends on those attachments as well as the power unit. A powered carpet head requires a compatible electric hose and connection; a suction-only hard-floor tool uses a different cleaning action. Match the inlet type and hose length before ordering accessories.

Installation and everyday operation

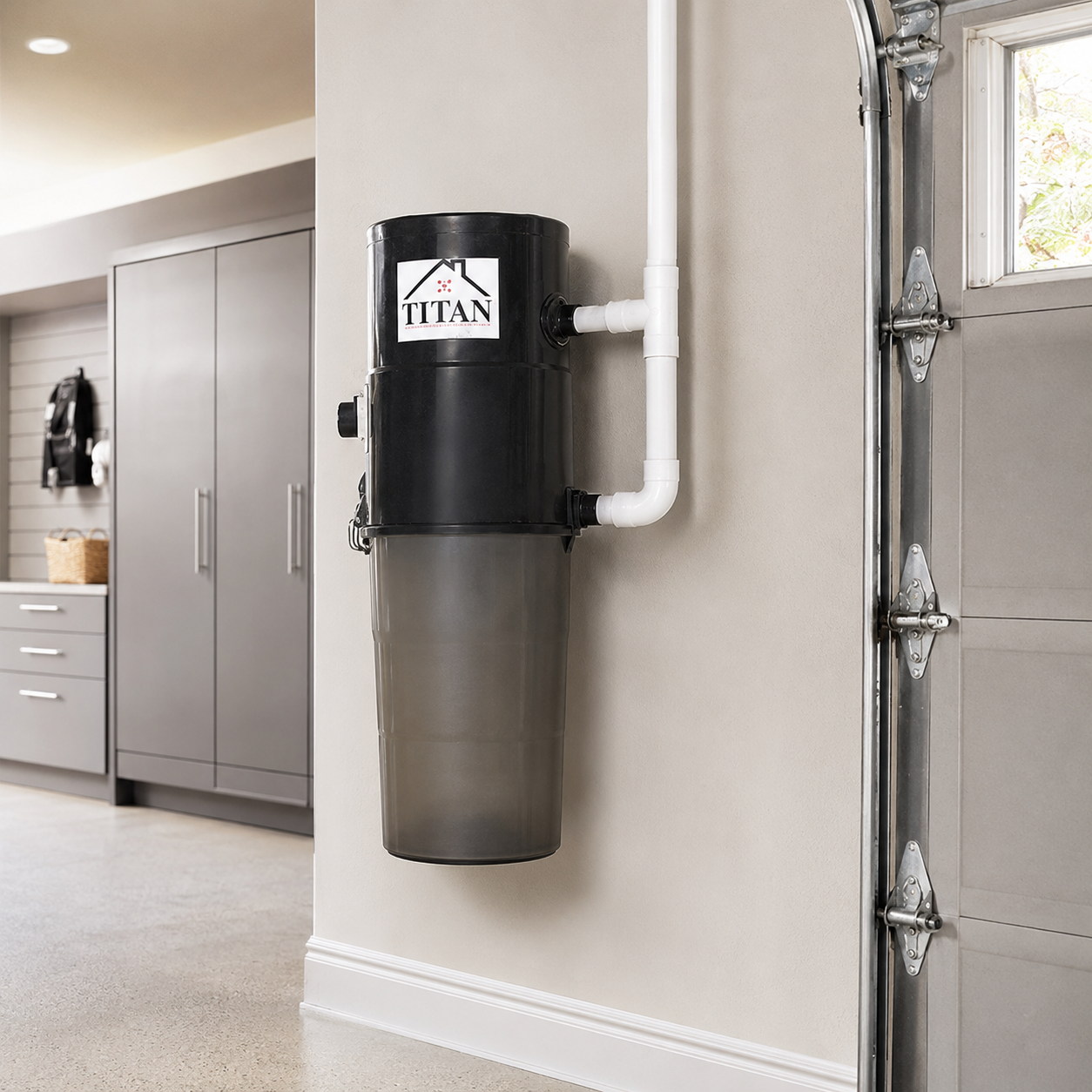

The square-foot figure is a sizing guide, not a guarantee for every house of that size. Have the installer assess pipe length, bends, hose length, inlet placement and the existing electrical supply. Measure wall space and leave room to release the lower collection container without moving the unit.

Connect the system’s low-voltage control wiring and piping according to the manual. The wall inlet and selected hose start and stop suction; handle switching depends on the hose type. Use the onboard utility inlet for nearby cleanup with a suitable hose. Keep the unit’s motor ventilation clear and avoid placing stored items on top of the motor housing.

Collection and filter care

Switch off and unplug before unlatching the six-gallon dirt canister. The manual calls for emptying at around two-thirds full. Check the canister seal and latch it securely after emptying so an air leak does not reduce system suction.

Keep cartridge 8107-01 installed while the unit runs. Remove loose dirt as directed and replace the cartridge at least annually, or earlier when its condition requires. Filtered cyclonic collection is not a filter-free system.

Troubleshooting and service

If suction drops, check the dirt canister, filter, lid seal and accessible hose before assuming a motor problem. A fault at one wall inlet can point to that branch or its control connection; poor suction at every inlet calls for checking the common air path and power unit. Switch off before maintenance, and have electrical or motor faults assessed through the service process.

Use the system for normal dry household debris. Water, hot ash and abrasive construction dust are outside this cleaning task and can damage the equipment. Keep the exact unit model and installation details for replacement filters and service.

Warranty for this power-unit family

The manufacturer’s limited residential warranty covers permanently installed components while the original purchaser owns the original installation home and the system remains there. Consumables and motor brushes are excluded, and attachments have separate terms. Non-residential coverage is shorter. Keep proof of purchase and follow the authorized-dealer service requirements.
