Titan T3200 Blue HEPA Bagged Upright Vacuum with Tools

Included tools

• T3200 upright with handle, nozzle, collection bag and filters.
• Stretch hose and metal telescopic wand.
• Dusting brush and crevice tool stored on the vacuum.

Controls and choosing a floor setting

The power pedal is on the right side of the nozzle, viewed from the operating position; the handle release is on the left. Select a nozzle height that lets the vacuum move comfortably over the carpet. Press the handle release again to lower the body farther for furniture access.

For hose cleaning, place the body upright and lift out the hose handle. Fit a tool directly for close work or extend the wand for reach. The main nozzle does not have a separately documented brush-off mode; protect the surface under the parked upright and follow the manual’s attachment-use directions. Check delicate carpets, loose fringe and easily marked finishes against their manufacturer’s care instructions.

Bags, filters and airflow checks

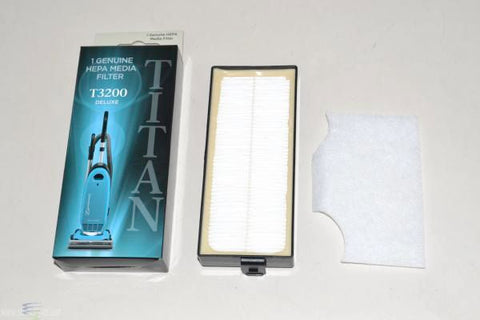

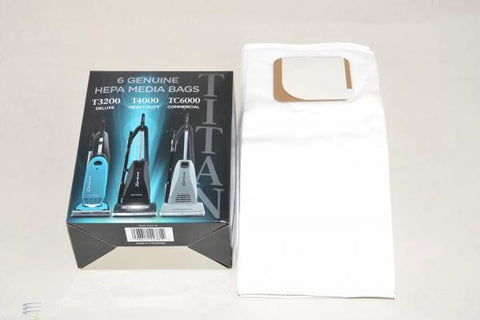

Replace the TUV-H disposable bag around two-thirds full, or sooner when fine dust restricts airflow. Seat the collar in its holder before closing the compartment. The filter system uses separate motor-protection and HEPA media components; replace the T3200F set as directed, normally yearly or earlier when loaded. These filters are replacement items and must not be washed and reused.

A full-bag indication can also mean a blocked hose or tool. If it appears with a partly filled bag, check the air path rather than replacing parts at random. The upper cord hook turns to release the cable for use.

Unplug before removing the bottom plate or clearing wrapped hair from the roller. Inspect the belt if the motor runs but the brush does not clean properly. Wrap the cord loosely on its hooks for storage.

Warranty and service

The Titan manual lists a 1-year limited warranty against defects in materials and workmanship for household use. Use outside a private household reduces coverage to 90 days. Normal wear, maintenance and consumable replacements are excluded. Keep the sales receipt and model/serial details; warranty repairs follow the manufacturer’s authorized-service requirements.
